123 Electronic 'Wasted Spark' Distributor Kit - Classic Fiat 500, Fiat 126, Autobianchi Bianchina
£249.95
Ex Tax: £249.95
Made by 123 in The Netherlands
The 123\FIAT-500 is designed especially for Fiat500- and Fiat126-engines. With a clever design it is made possible to use the existing distributor. No more wear, no more replacement of points, condensor, rotor and cap, EVER again.
The advance is now electronically calculated : set it, and forget it!
The advance is now electronically calculated : set it, and forget it!
The 123\FIAT is designed to work with a double coil, producing a strong crisp spark, for better starting and economy.
The unit offers a built-in LED for easy static timing.
The unit offers a maximum total of 16 advance-curves to be selected by the end-user.
| Specifications | |
| Cylinders: | 2 |
| Directions: | CW/CCW |
| Voltage: | 4,0 - 15,0 volt |
| Range: | 500 - 8000 rpm |
| Temperature: | -30 to 100 Celsius |
| Coil: | Black 3,0 Ohm stock coil. |
| Dwell: | constant current, fully autom. |
| Time-out: | after 1 second current is switched off |
| Spark-bal: | <0,5 degr. crankshaft |
| Max. Advance: | 40 degr. crankshaft |
| Wiring: | red = +6V or +12V, black = '-' coil |
All Wiring & Instructions Included apart from the Ballast Resistor which is something thats recomended to be installed by a qualified auto electrician who is familiar with these engines.

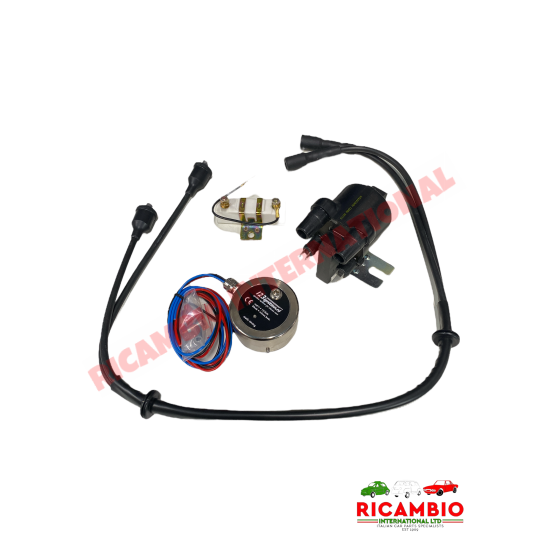

This Kit is supplied with
1x 123 Distributor (RIC-2150)
1x Set Magnecor Ignition Leads (best Spark to suit this Distributor) (RIC-7075)
1x Electronic Coil (Ric-984)
1x Ballast Resistor (RIC-3292)
to fit:
Classic Fiat 500 all models (NOT Giardiniera)
Fiat 126 all models (AIR COOLED ONLY - NOT BIS)
Autobianchi Bianchina all models (NOT PANORAMICA)
If you have any questions or queries please contact us
